Stainless steel wire ropes: 6x19S-IWRC

Definition of inox 6x19S-IWRC:

  • Flexible construction with resistance to surface abrasion.
  • The metal core increases the wire rope’s breaking load and provides resistance to structural crushing.
  • Pre-formed wire ropes for ease of handling.
  • Wire ropes used on trawlers and shrimp fishing vessels. Also used on offshore platform cranes or forestry and mining haulage machinery in acidic environments.
  • Plastic coating available (PVC or PA).
  • Complies with standard EN 12385-4 and available in AISI 304 or AISI 316 grades.

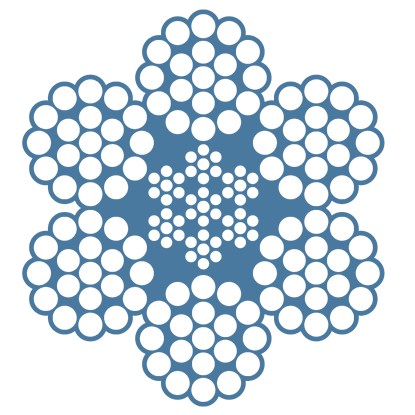

Construction: 6x19S-IWRC

Ø (mm)Weight (Kg/100mt)Minimum breaking load kN 1570N/mm2
1042.655.9
1151.667.6
1261.380.5
1372.094.5
1483.5110
16109143
18138181

1 kN (unit of force) = 0,102 t (mass unit)
