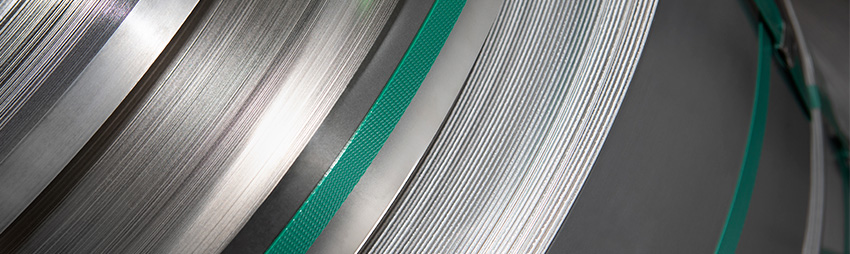

Aluminium Strip

The mechanical properties shown on the following tables contain the intermediate thickness ranges. For very large and/or small thicknesses, there may be deviations from the data presented.

MECHANICAL PROPERTIES ALUMINIUM STRIP EN 485-2

QUALITY OF THE ALUMINIUMTreatment conditionTensile strength RmYield strength Rp02Minimum elongation % (based on increased thickness)
N/mm2
DesignationStandardMin.Max.Min.Max.A50mm
EN AW-1050A (Al 99.5)EN 4850/H111659520–20-29
H1410514585–2-5
H16120160100–1-3
H18135–120–1-2
H228512555–4-11
H2410514575–3-8
H2612016090–2-4
EN AW-1070 (Al 99.7)EN 4850/H111609015–23-32
H18125–105–2
H228012050–7-12
H2410014060–5-9
EN AW-1200 (Al 99.0)EN 4850/H1117510525–19-28
H1410515595–1-5
H18150–130–1-2
H19160–140–1
H2411515590–3-7
AW-2017A (Al Cu4MgSi(A))EN 485O–225–14512-14
T4390–245–14-15
AW-2024 (Al Cu4Mg1)EN 485O–220–14012-13
T4425–275–12-14
EN AW-3003 (Al Mn1Cu)EN 4850/H1119513535–15-23
H14145185125–2-4
H16170210150–1-2
H18190–170–1-2
H24145185115–4-6
H26170210140–2-3
EN AW-3005 (Al Mn1Mg0.5)EN 485H11111516545–12-19
H14170215150–1-3
H22145195110–5-7
H24170215130–4
H28220–190–2-3
EN AW-3105 (Al Mn0.5Mg0.5)EN 485H11110015540–14-17
H18195–180–1
H24150200120–4-5
EN AW-5005 (Al Mg1(B))EN 485H11110014535–15-22
H18185–165–1-2
H34145185110–3-6
H36165205135–2-4
EN AW-5052 (Al Mg2.5)EN 4850/H11117021565–12-18
H14230280180–3-4
H18270–240–1-2
H34230280150–4-7
EN AW-5083 (Al Mg4.5Mn0.7)EN 485H111275350125–11-15
H321305385215–8-10
H32305380215–5-8
H34340400250–4-7
EN AW-5086 (Al Mg4)EN 485H111240310100–11-17
EN AW-5182 (Al Mg4.5Mn0.4)EN 485H111255315110–11-13
EN AW-5657 (Al 99.85 Mg1(A))EN 485H242125170100–13
H25140180110–5
H26150190120–3
EN AW-5754 (Al Mg3)EN 4850/H11119024080–12-18
H14240280190–3-4
H18290–250–1-2
H22220270130–7-11
H32220270130–7-11
H34240280160–6-8
H36265305190–4-6
EN AW-6016 (Al Si1.2Mg0.4)EN 485T41702508014024
T626030018026010
EN AW-6082 (Al Si1MgMn)EN 485O–150–8514-18
T4205–110–12-15
T6310–260–6-10
EN AW-7075 (Al Zn5.5MgCu)EN 485O–275–14510
T6545–475–6-8
T76500–425–7-8
T73460–385–7-8
EN AW-8011A (Al FeSi(A)EN 485O/H1118513030–19-25
H18165–145–1-2
H24125165–3-6

EXPLANATION OF THE DESIGNATIONS OF THE TREATMENT CONDITIONS USED IN THE EN 485-2 TABLES

Designation of the treatment conditionExplanation
OAnnealed – products which, after hot forming, have the properties required for the annealed state can be designated with the O condition
H14Work hardening – 1/2 hard
H16Work hardening – 3/4 hard
H18Work hardening – 4/4 hard
H19Work hardening – extra hard
H111Annealing with light work hardening (less than H11) during the final processes such as drawing or flattening
H22 / H32Work hardening – 1/4 hard
H24 / H34Work hardening – 1/2 hard
H26 / H36Work hardening – 3/4 hard
H321Work hardening and stabilisation- 1/4 hard, applied to aluminium-magnesium alloys for which resistance to exfoliation corrosion and intergranular corrosion is requested
T4Solution and natural ageing
T6Solution and artificial ageing
T73Solution and artificial over-ageing to achieve the best resistance to stress corrosion
T76Solution and artificial over-ageing to achieve the best resistance to exfoliation corrosion
CONDITION EQUIVALENTS
H2 ~ H12 ~ H22 ~ H32
H4 ~ H14 ~ H24 ~ H34
H8 ~ H18 ~ H28 ~ H38

Designation of the alloyChemical CompositionOthersAluminium
NumericalSymbolicSiFeCuMnMgCrZnTiGaVNotesEach (max.)Total (max.)min.
EN AW-1050AEN AW-Al 99.50.25 max.0.40 max.0.05 max.0.05 max.0.05 max.–0.07 max.0.05 max.–––0.03–99.5
EN AW-1070AEN AW-Al 99.70.20 max.0.25 max.0.03 max.0.03 max.0.03 max.–0.07 max.0.03 max.–––0.03–99.7
EN AW-1200EN AW-Al 99.00.05 max.0.05 max.––0.1 max.0.05 max.–––0.050.1599
EN AW-2017A 1)EN AW-Al CuMgSi(A)0.20 – 0.80.70 max.3.5 – 4.50.40 – 1.00.40 – 1.00.1 max.0.25 max.–––0.25 Zr + Ti0.050.15Rest
EN AW-2024EN AW-Al CuMg10.50 max.0.5 max.3.8 – 4.90.30 – 0.91.2 – 1.80.1 max.0.25 max.0.15 max.–––0.050.15Rest
EN AW-3003EN AW-Al Mn1Cu0.60 max.0.7 max.0.05 – 0.201.0 – 1.5––0.1 max.––––0.050.15Rest
EN AW-3005EN AW-Al Mn1Mg0.50.60 max.0.7 max.0.3 max.1.0 – 1.50.20 – 0.60.1 max.0.25 max.0.1 max.–––0.050.15Rest
EN AW-3105EN AW-AlMn0.5Mg0.50.60 max.0.7 max.0.3 max.0.30 – 0.80.20 – 0.80.2 max.0.40 max.0.1 max.–––0.050.15Rest
EN AW-5005EN AW-AlMg1(B)0.30 max.0.7 max.0.2 max.0.2 max.0.50-1.10.1 max.–0.25 max.–––0.050.15Rest
EN AW-5052EN AW-Al Mg2.50.250.40 max.0.1 max.0.1 max.2.2 – 2.80.15 – 0.350.1 max.––––0.050.15Rest
EN AW-5083EN AW-Al Mg4.5Mn0.7 0.40 max.0.40 max.0.1 max.0.40 – 1.04.0 – 4.90.05 – 0.20.25 max.0.15 max.–––0.050.15Rest
EN AW-5086EN AW-Al Mg40.40 max.0.50 max.0.1 max.0.20 – 0.73.5 – 4.50.05 – 0.20.25 max.0.15 max.–––0.050.15Rest
EN AW-5182EN AW-Al Mg4.5Mn0.40.20 max.0.35 max.0.15 max.0.20 – 0.504.0 – 5.00.1 max.0.25 max.0.1 max.–––0.050.15Rest
EN AW-5657EN AW-Al 99.85Mgl(A)0.08 max.0.10 max.0.1 max.0.03 max.0.6-1.0––0.05 max.0.030.05–0.020.05Rest
EN AW-5754 2)EN AW-Al Mg30.40 max.0.40 max.0.1 max.0.50 max.2.6 – 3.60.300.2 max.0.15 max.––0.10 – 0.6 Mn + Cr0.050.15Rest
EN AW-6016EN AW(Al Si1.2Mg0.4)1.0 – 1.50.50 max.0.2 max.0.2 max.0.25 – 0.60.1 max.0.2 max.0.15 max.–––0.050.15Rest
EN AW-6082EN AW-Al Si1MgMn0.7 – 1.30.50 max.0.1 max.0.40 – 1.00.6 – 1.20.2 max.50.2 max.0.1 max.–––0.050.15Rest
EN AW-7075EN AW-Al Zn5.5MgCu0.40 max.0.50 max.1.2 – 2.00.30 max.2.1 – 2.90.18 – 0.285.1 – 6.10.2 max.–––0.050.15Rest
EN AW-8011AEN AW-Al FeSi(A)0.40 – 0.80.50 – 1.00.1 max.0.1 max. max.0.1 max.0.1 max.0.1 max.0.05 max.–––0.050.15Rest

1) 0,25 Zr + Ti.
2) 0,10 – 0,6 Mn + Cr.

ALLOY GROUP

Group I1080A1070A1050A1220
3003310330053105
40064007
50055050
8011A
Group II20142017A2024
3004
50405049525150525154A545457545182
50835086
60616082
7020702170227075

THICKNESS TOLERANCES

Nominal thicknessThickness tolerances according to EN 485-4 for nominal widths of
≤ 10001000 < and ≤ 1250
>≤Alloy GroupAlloy Group
IIIIII
0.20.4± 0.02± 0.03± 0.04± 0.05
0.40.5± 0.03± 0.03± 0.04± 0.05
0.50.6± 0.03± 0.04± 0.05± 0.06
0.60.8± 0.03± 0.04± 0.06± 0.07
0.81± 0.04± 0.05± 0.06± 0.08
11.2± 0.04± 0.05± 0.07± 0.09
1.21.5± 0.05± 0.07± 0.09± 0.11
1.51.8± 0.06± 0.08± 0.10± 0.12
1.82± 0.06± 0.09± 0.11± 0.13
22.5± 0.07± 0.10± 0.12± 0.14
2.53± 0.08± 0.11± 0.13± 0.15
33.5± 0.10± 0.12± 0.15± 0.17
3.54± 0.15–± 0.20–
45± 0.18–± 0.22–

Measurements in mm.

WIDTH TOLERANCES

Nominal thickness tStandard slitting tolerances for VINCO1)Width tolerances according to EN 485-4 for nominal widths of:
>≤3-1515-5050-150>150≤ 100100 < and ≤  300300< and ≤ 500500 < and ≤ 1250
–0,20;+0,150;+0,150;+0,150;+0,2––––
0,20,40;+0,150;+0,150;+0,150;+0,20;+0,30;+0,40;+0,60;+1,5
0,40,60;+0,170;+0,180;+0,20;+0,240;+0,30;+0,40;+0,60;+1,5
0,610;+0,170;+0,180;+0,20;+0,240;+0,30;+0,50;+10;+1,5
11,50;+0,20;+0,20;+0,20;+0,30;+0,40;+0,70;+1,20;+2
1,52on request0;+0,260;+0,30;+0,320;+0,40;+10;+1,20;+2
22,5on request0;+0,260;+0,30;+0,320;+10;+10;+1,50;+2
2,53on requeston request0;+0,320;+0,350;+10;+10;+1,50;+2
35on requeston request0;+0,320;+0,35–0;+1,50;+20;+3

Measurements in mm.
1) Other, closer dimensional tolerances are possible under a commercial agreement .

EDGE CAMBER TOLERANCES

Nominal width (W)Closer edge curve tolerances possible under commercial agreement.Tolerances according to Standard EN 485-4 for: edge curve
Maximum deviation
2000 mm
Thickness (t)		Maximum deviation
2000 mm
Thickness (t)
t ≤ 1.20 mmt > 1.20 mmTolerance on the dmax curve
3 ≤ W < 610.0015.00–
6 < W ≤  108.0012.00–
10 < W ≤  204.006.00–
20 < W  < 252.004.00–
25 ≤ W ≤ 1002.004.008 1)
1002.004.006.00
300 < W ≤  3502.004.005.00
350 < W ≤  600––5.00
600 < W ≤  1000––4.00

Measurements in mm.
1) For nominal widths below 25mm, the tolerances will be agreed when requesting the quote or placing the order.

RIPPLE – LONGITUDINAL FLATNESS

The flatness tolerance of the strips in cut lengths in the direction of rolling must be a maximum of 10 mm over 1000 mm. Any other flatness requirement must be agreed when placing the order.
  • Under a commercial agreement
  • We are able to supply aluminium that can be anodised or is anodised
  • We also offer the following material cleaning options (depending on the alloy):
    • Wash
    • Chemical degreasing

EUROPEAN STANDARD (EN)Approximate international equivalents
Numerical
 classification		Classification of symbolsUS (AISI)JAPAN (JIS)CHINA (GB)
EN AW-1050AEN AW-Al 99.5
EN AW-1070AEN AW-Al 99.7
EN AW-1200EN AW-Al 99.0
EN AW-2017AEN AW-Al CuMgSi(A)
EN AW-2024EN AW-Al CuMg1
EN AW-3003EN AW-Al Mn1Cu
EN AW-3005EN AW-Al Mn1Mg0.5
EN AW-3105EN AW Al Mn0.5Mg0.5
EN AW-5005EN AW-Al Mg1(B)
EN AW-5052EN AW-Al Mg2.5
EN AW-5083EN AW-Al Mg4.5Mn0.7
EN AW-5086EN AW-Al Mg4
EN AW-5182EN AW-Al Mg4.5Mn0.4
EN AW-5657EN AW-Al 99.85Mgl(A)
EN AW-5754EN AW-Al Mg3
EN AW-6016EN AW(Al Si1.2Mg0.4)
EN AW-6082EN AW-Al Si1MgMn
EN AW-7075EN AW-Al Zn5.5MgCu
EN AW-8011AEN AW-Al FeSi(A)

ALUMINUM STRAPPING: SECURING LIGHT LOADS

ALUMINUM PROCESSING STATES

At VINCO we are specialists in the supply of aluminum strapping with a wide variety of finish options, tolerances and treatment states -which determine the mechanical characteristics of this type of strapping-. Knowing each of the states, we will determine the minimum and maximum values of tensile strength, yield strength and minimum elongation in percentage according to the thickness.

The basic stages of aluminum processing are summarized in five:

F: Gross manufacturing.In this case it is applied to products that do not require a control of the thermal conditions or cold deformation that have been used at the time of manufacture.There are no established values for mechanical characteristics.

O: Annealed. Applied to aluminum semi-finished products to obtain the lowest state of resistance.

H: Acritude. Generally used in laminates/stretchings.Applied to semi-products whose strength has been increased by cold deformation, with or without intermediate heat treatment to achieve some reduction in mechanical characteristics.

W: Solution heat treatment and quenching. It is a state that applies to aluminum products whose alloys mature spontaneously at room temperature after solution heat treatment and quenching. This state will only be used when the time of natural maturation is indicated. For example W1/2 hour.

T: Structural hardening heat treatment. Application in semi-products in which their mechanical resistance is increased by heat treatment with or without supplementary acritude, in order to obtain stable states.

Acriton-hardened aluminum strips have a number of specifications depending on the number in the second and third positions of the nomenclature (HXX). Each of these is listed below and full details can be found in the status section:

ACCRITUDEProcess-specific variationH1: acritude
H2: accritude and partial annealing
H3: accritude and stabilized
Mechanical characteristicsHX2: ¼ hard state
HX4: semi-hard state
HX6: ¾ hard state
HX8: hard state
HX9: extrahard state
Applicable to all forgeable alloysH (x)11:  after annealing, hardening by cold deformation which prevents it from being classified as a reduced condition (0)
H 112: strain hardening at elevated temperature
H 113: Applied to plates which, after annealing, hardening by cold deformation prevents them from being classified as reduced condition (0)

For aluminum strips subjected to structural hardening heat treatment, there are also a number of subdivisions according to the digits that are placed after the letter T in the nomenclature (TXXX). All of them are detailed in the product data sheet status section.

ALUMINUM STRIP FINISHES

As for the finishes available for the supply of aluminum strip, VINCO offers a wide range of possibilities, including anodizable and anodized aluminum. This anodizing process consists of creating a layer of surface oxide by means of an electrolytic process that protects the material against friction wear, corrosion, electrical insulation and, therefore, increases its useful life. Contact us for more information.

MECHANICAL CHARACTERISTICS AND OTHER SPECIFICATIONS

In the product data sheet you can consult all the information available for aluminum strip with regard to chemical composition, equivalences according to the European Standard (EN), mechanical characteristics depending on the quality of the material and tolerances for each of the alloys: thickness, width, deflection and flatness tolerances.

For any other questions, please do not hesitate to contact our team of experts at (+34) 94 412 33 99 or by email at info@vinco.es
